DeWalt DCH614X2 Description

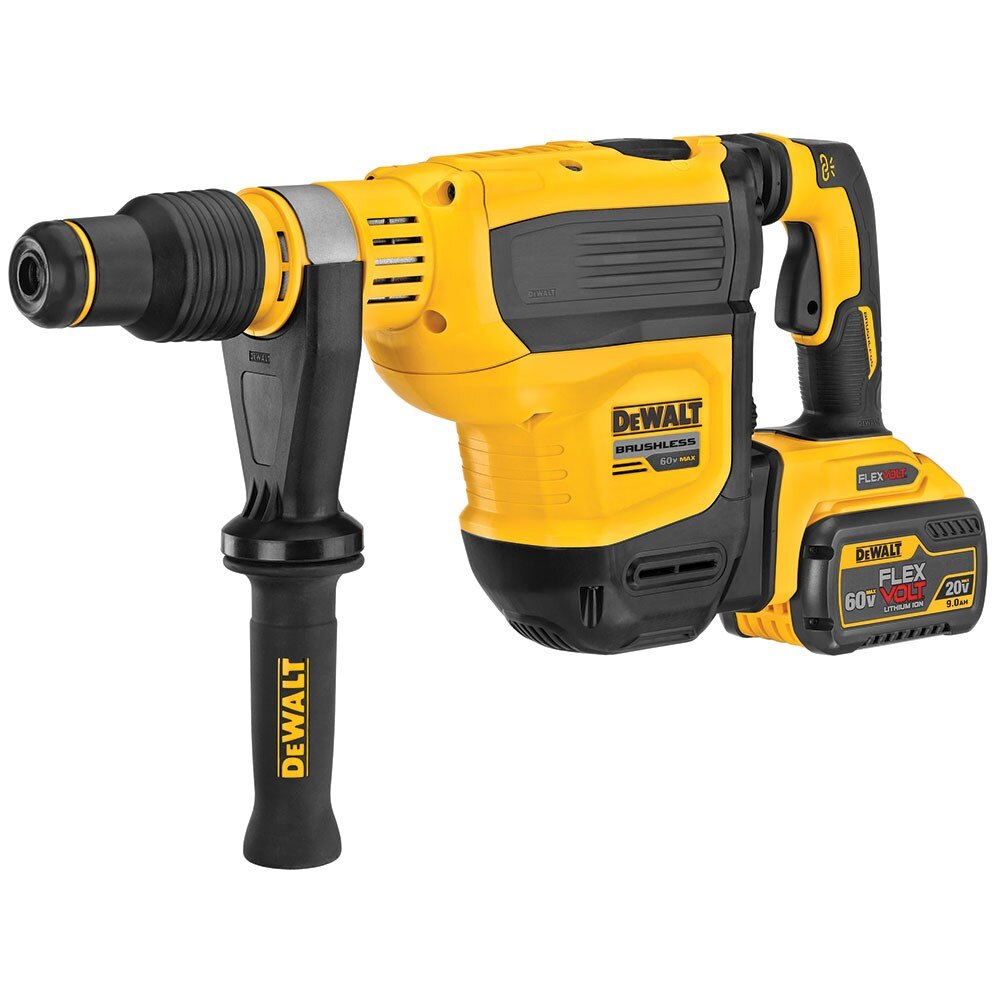

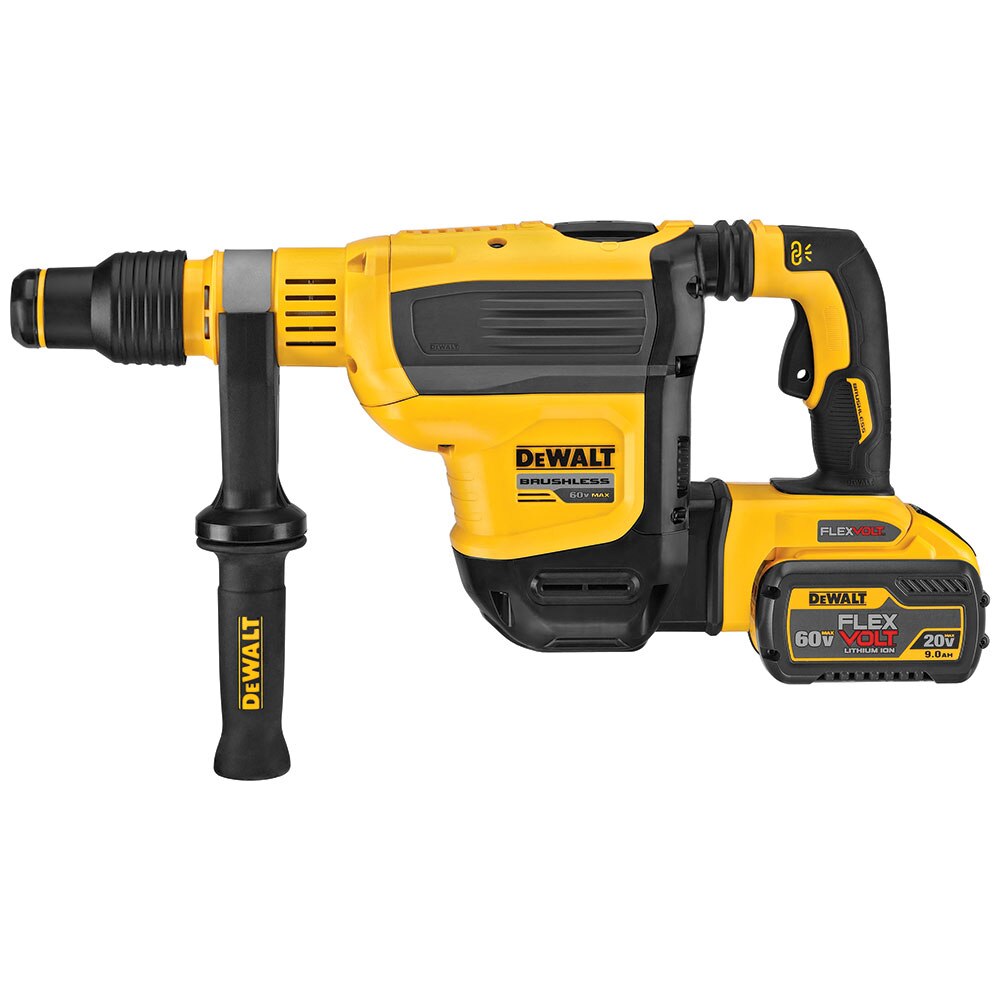

The 60V MAX* 1-3/4 in. SDS Max Brushless Combination Rotary Hammer is a midweight, high-performance rotary hammer that is powered by a DEWALT brushless motor and durable German engineered mechanisms. It delivers 10.5 joules of impact energy for fast drilling and chipping, even in the hardest concrete. Constant-speed electronics allow the tool to maintain speed under load, while the patented E-CLUTCH® system protects the user in bind-up situations by stopping the rotation of the bit. The midweight design makes it ideally suited for high-performance, horizontal serial drilling for #5 – #8 rebar, dry coring up to 4 in., chipping in any upper to lower wall and bushing applications. The SHOCKS Active Vibration Control® system reduces vibration felt by the user at the handles, compared to rotary hammers without this feature. The Brushless Combination Rotary Hammer is equipped with WIRELESS TOOL CONTROL™, which allows the user to link the tool to the DCV585 60V MAX* dust extractor for remote extractor activation. This tool comes Tag Ready™ so users and companies can attach the DEWALT Tag™ and track its location virtually anywhere via the Tool Connect™ app.
DeWalt DCH614X2 Includes
- (1) DCH614 60V MAX* combination rotary hammer
- (1) 360° Side handle
- (2) FLEXVOLT® DCB609 batteries
- (1) Fast charger
- (1) Kit box
DeWalt DCH614X2 Features
- 10.5 Joules of impact energy for fast drilling and chipping, even in the hardest concrete.
- E-CLUTCH system protects the user in bind-up situations by stopping the rotation of the bit.

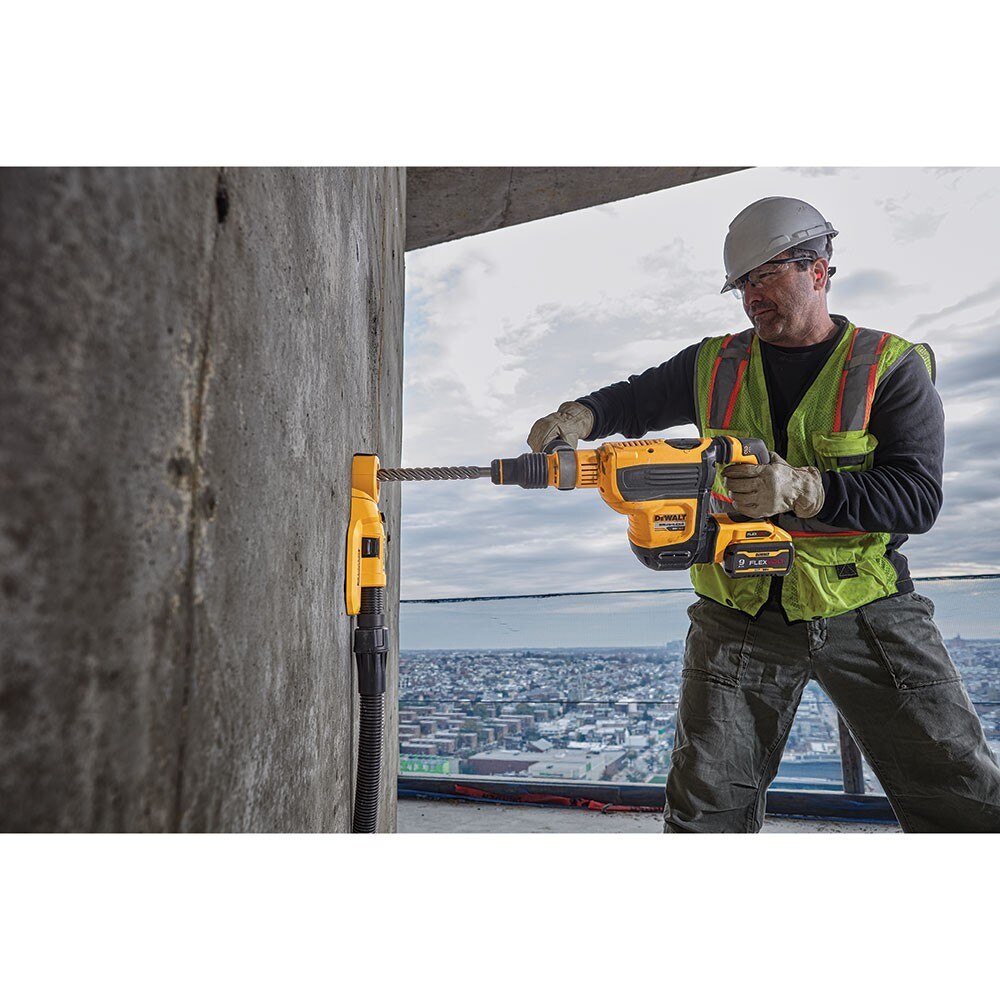

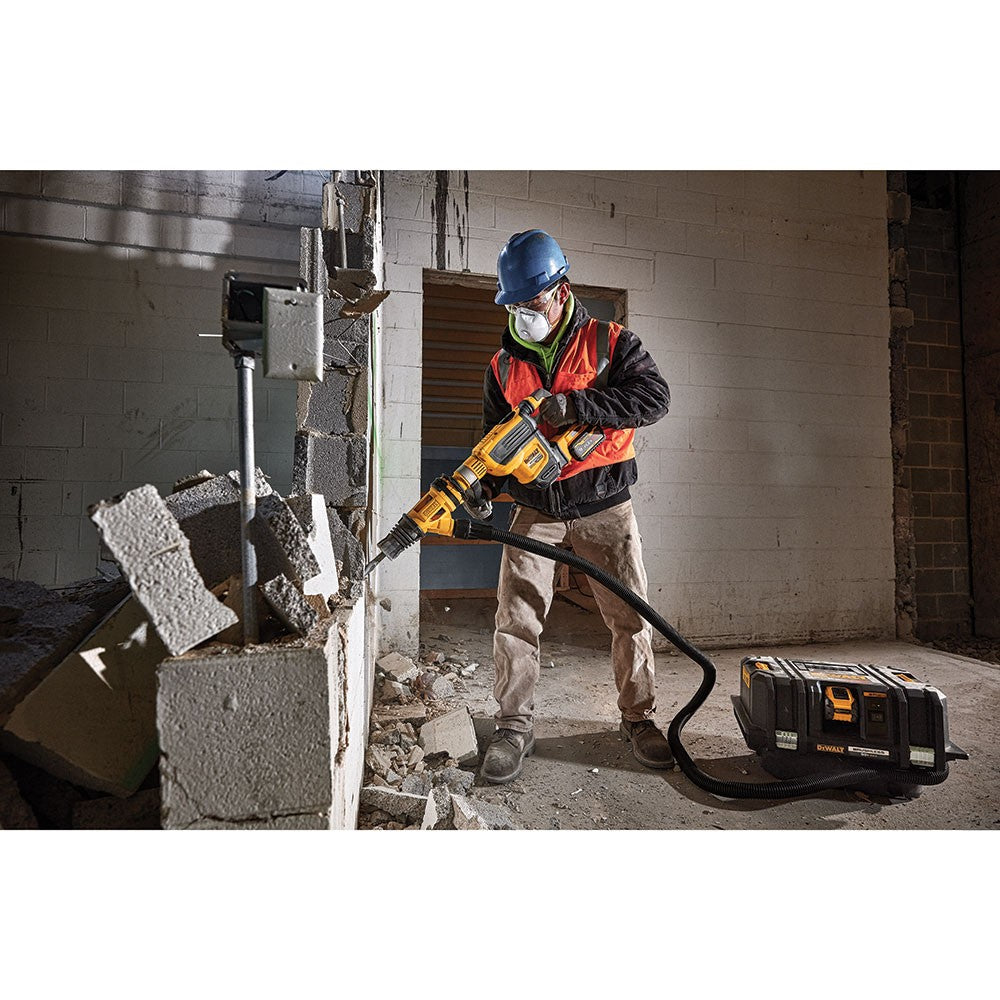

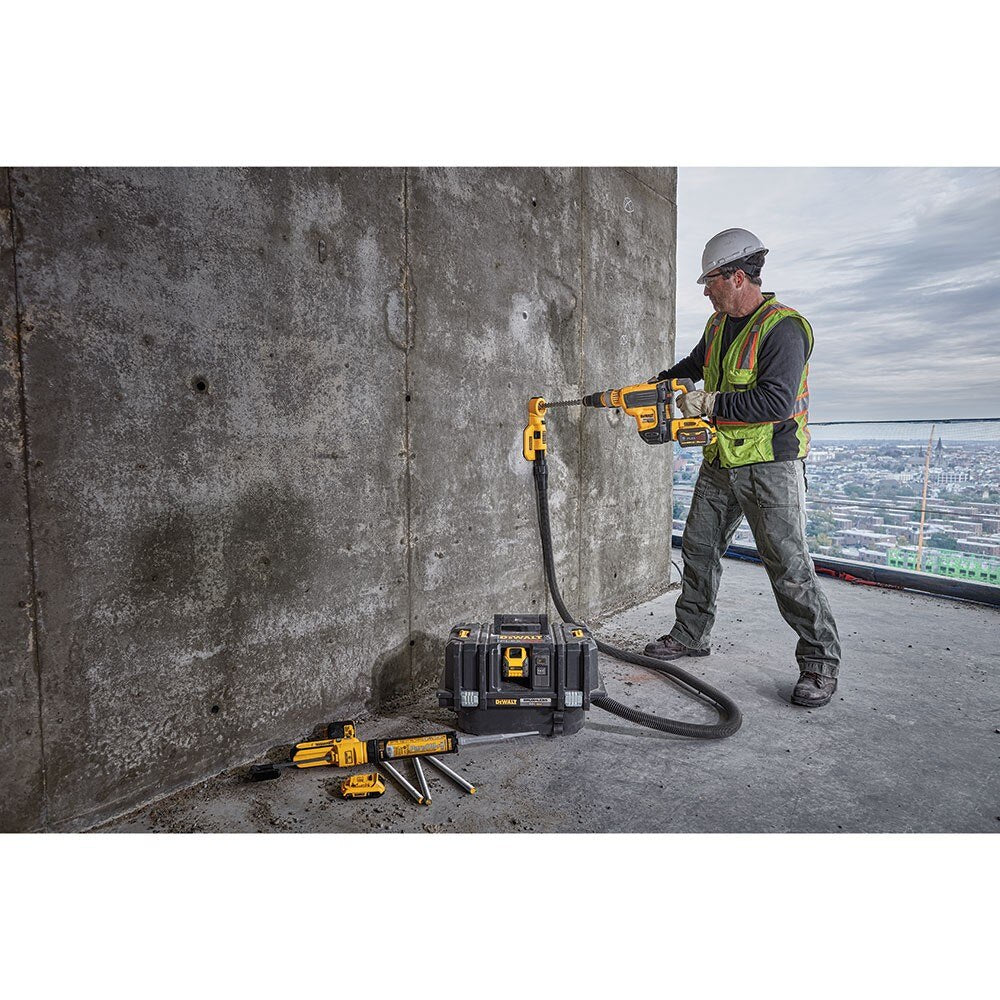

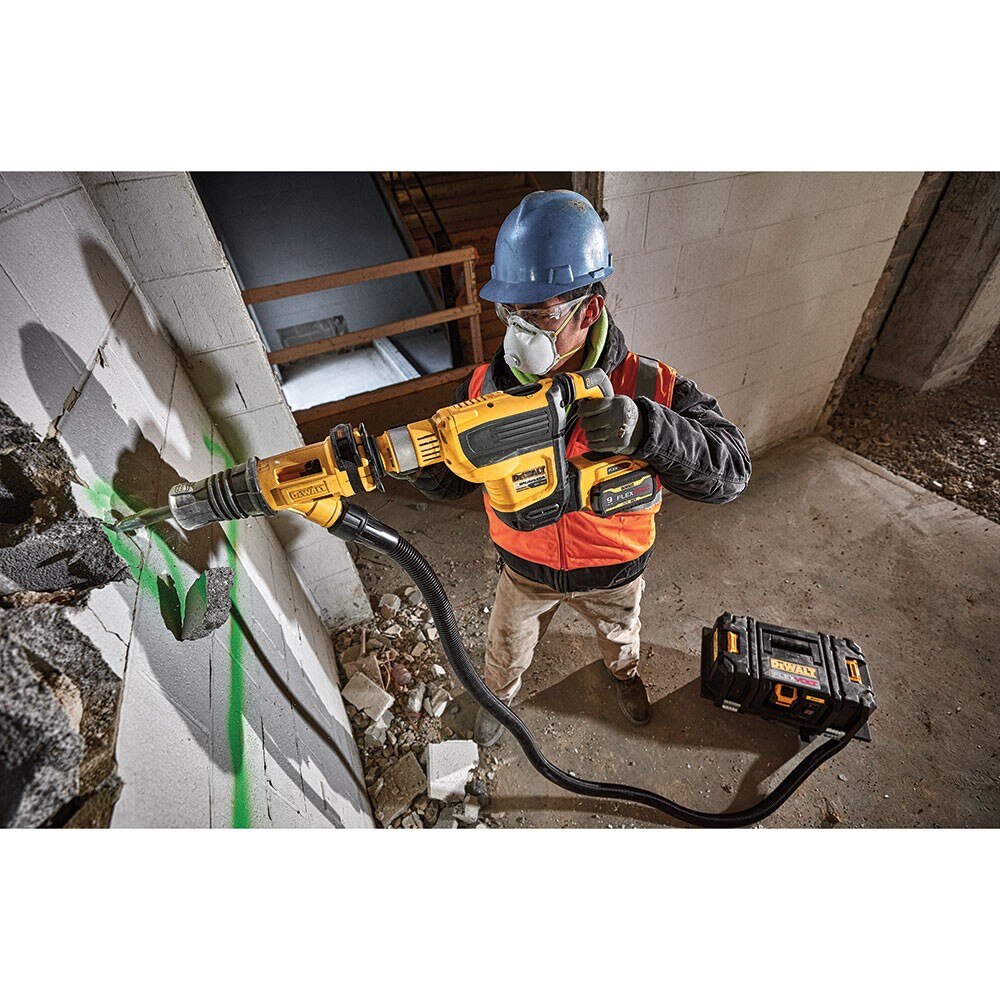

- Equipped with integrated WIRELESS TOOL CONTROL, which allows the user to link the tool to the DCV585 60V MAX* dust extractor for remote extractor activation.
- The SHOCKS Active Vibration Control system reduces vibration felt by the user at the handles, compared to rotary hammers without this feature.
- 7-position, variable-speed control for precision hole placement, chipping, and drilling with Atomic Undercut bits.
- Brushless motor and durable German engineered mechanisms.
- Constant-speed electronics allow the tool to maintain speed under load.

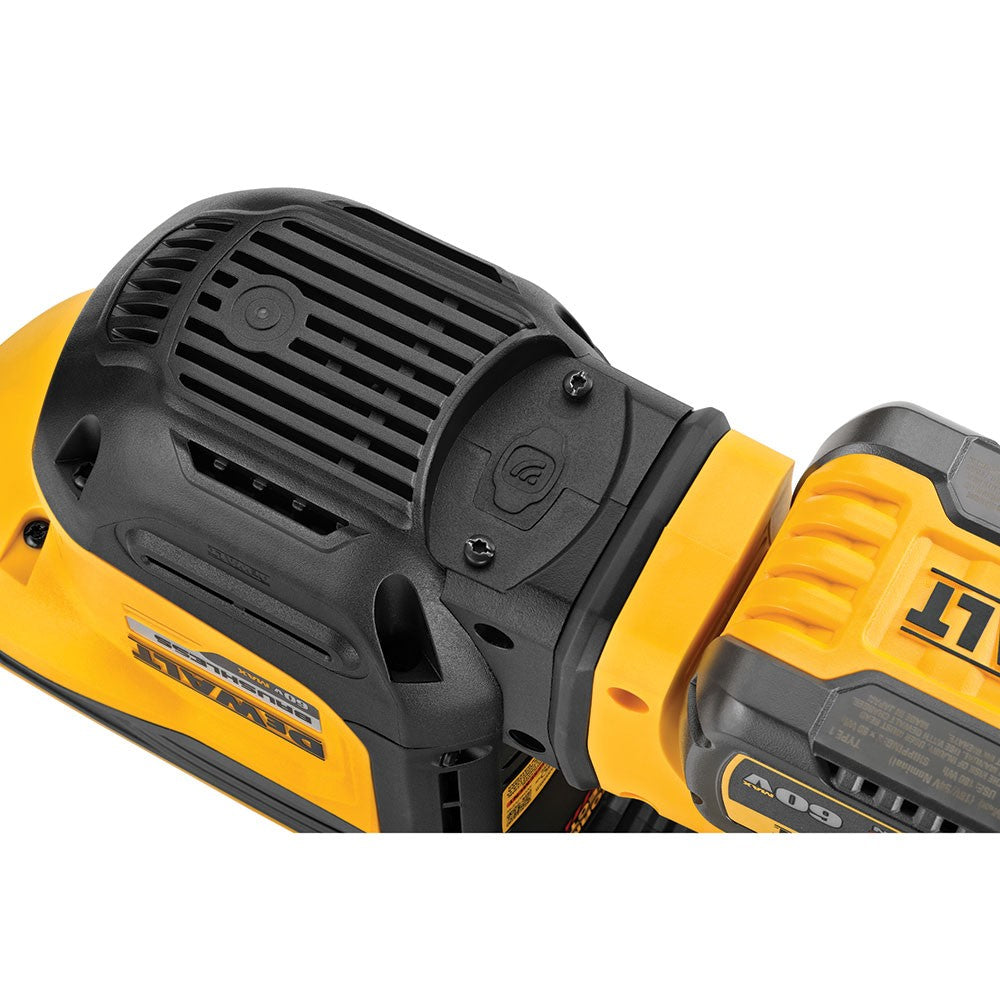

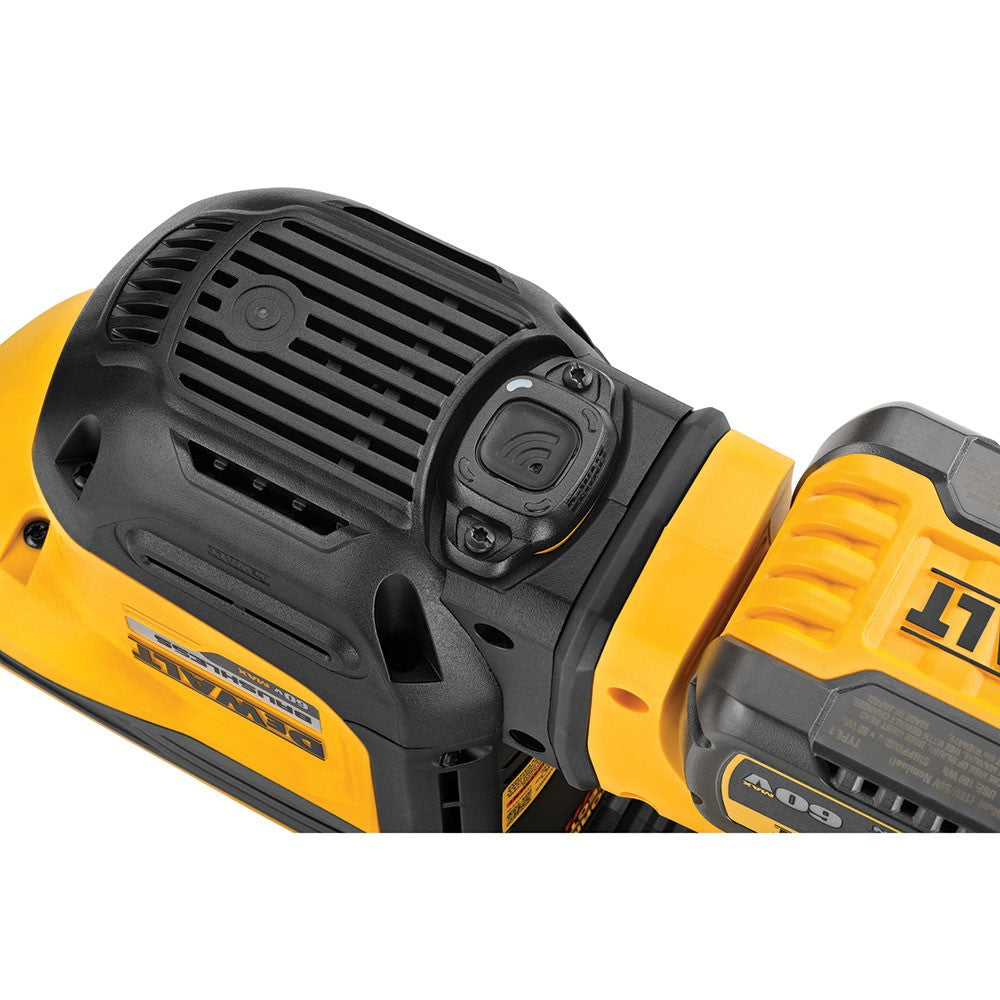

- Tag Ready so users and companies can attach the DEWALT Tag and track its location virtually anywhere via the Tool Connect™ app.

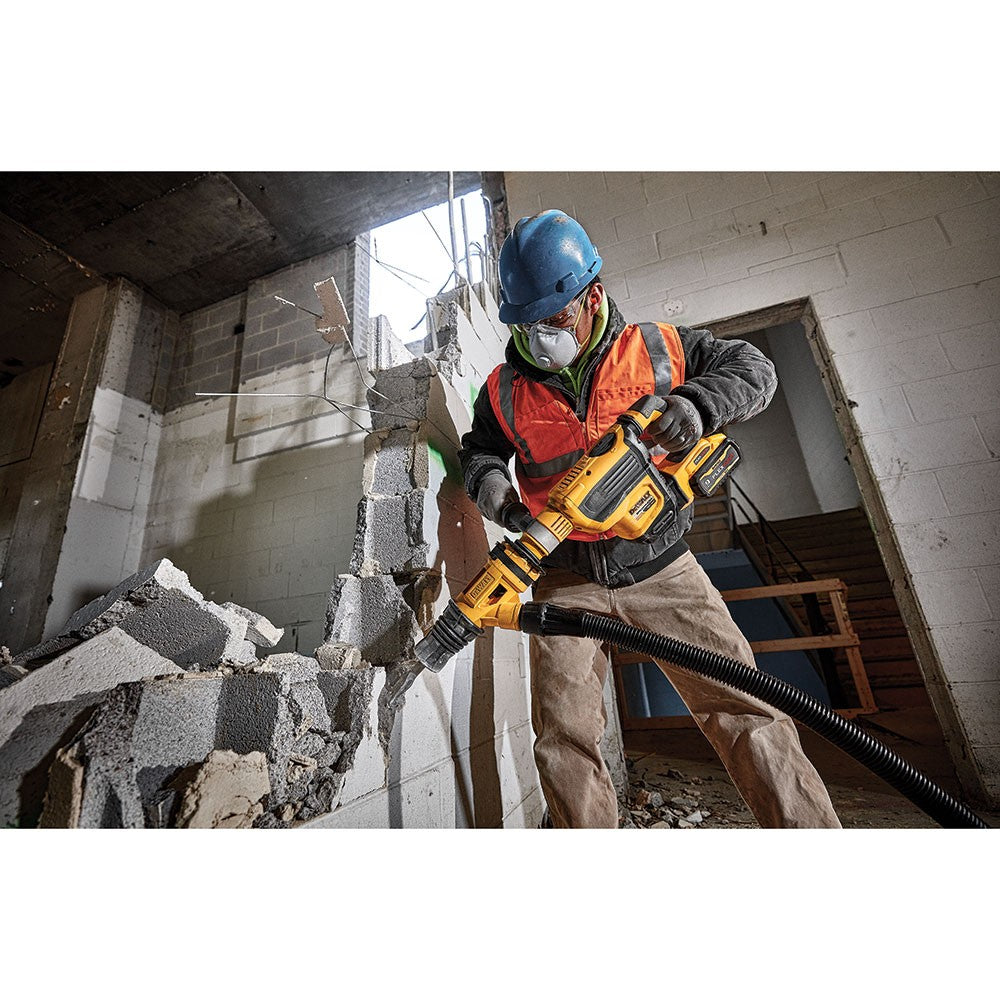

- The midweight design makes it ideally suited for high-performance, horizontal serial drilling for #5 – #8 rebar, dry coring up to 4 in., chipping in any upper to lower wall and bushing applications.
DeWalt DCH614X2 Specifications
| BLOWS/MIN | 1450 – 2900 BPM |
| E-CLUTCH(TM) | E-CLUTCH |
| IMPACT ENERGY | 10.5 JOULES |
| MAX. DIAMETER CORE | 4 IN |
| NO LOAD SPEED | 190 – 380 RPM |
| OPTIMAL CONCRETE DRILLING | 5/8 – 1 1/4 IN |
| POWER TOOL TYPE | CORDLESS |
| TOOL HEIGHT | 9.9 IN |
| TOOL LENGTH | 20.7 IN |
| TOOL WEIGHT | 15 LBS |
| VIBRATION CONTROL | SHOCKS |
| Title | Default Title |
|---|
